SMTCL Series

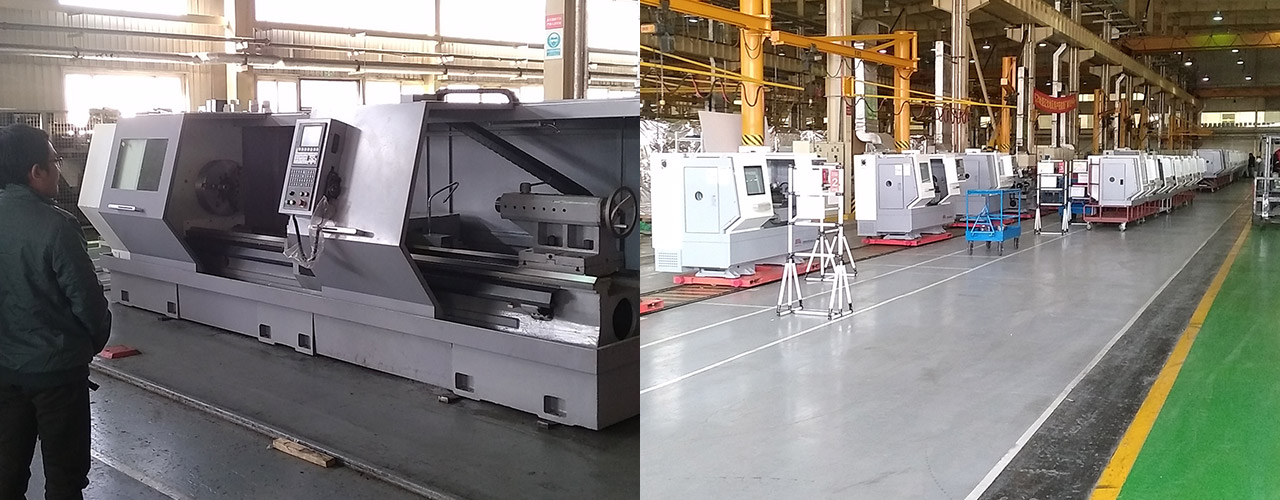

CAK
Model
CAK4065
CAK4085
CAK50135
Max. Turning leght
650 mm
850mm
1350 mm
Max. Swing diameter over bed
ø400mm
ø400 mm
ø500 mm
Max. Swing diameter over slide
ø200 mm
ø200 mm
ø300 mm
Max. Cutting diameter over slide
ø400 mm
ø400 mm
ø500 mm
Spindle nose
A16
A16
A28
Chuck diameter
ø250 mm
ø250 mm
ø250 mm
Diameter of spindle bore
ø53 mm
ø53 mm
ø70 mm
Spindle speed
100-2400 r/min
100-2400 r/min
15-2200 r/min
Main motor power
5.5 kW
5.5 kW
7.5 kW
Diameter of tailstock sleeve
ø60 mm
ø60 mm
ø75 mm
Travel of tailstock sleeve
160 mm
160 mm
150 mm
Number of tools in turret
4 tool
4 tool
4 tool
Size of tool shank
20x20 mm
20x20 mm
25x25 mm
Rapid feed (X/Z axis)
6/12 m/min
6/12 m/min
6/12 m/min
Machining accuracy
IT6-IT7
IT6-IT7
IT6-IT7
Net weight
1860 kg
1960 kg
3000 kg
Machine dimensions (LxWxH)
2350x1500x1580
2470x1500x1580 mm
3780x1700x1735mm
