i5 Series
i5 M4
Model
i5 M4.5
i5 M4.8
Controller
i5
i5
X/Y/Z Axis Travel
1000/610/650 mm
1300/700/700 mm
Table Size
1200x500 mm
1400x700 mm
Max.Load
600 kg
1000 kg
Spindle Speed
8000/10000 (opt) Rpm
8000/10000 (opt) Rpm
Spindle Taper
BT40/BT50 (opt)
BT40/BT50 (opt)
X/Y/Z Rapid Feed
32/32/30 m/min
24/24/20 m/min
Auto Tool Change
Arm 24 T
Arm 24 T
Tool Change Time
2.5 s
3.5 s
X/Y/Z Positioning Accuracy
0.016/0.012/0.012 mm
0.020/0.012/0.012 mm
X/Y/Z Axis Repeatability
0.010/0.008/0.008 mm
0.012/0.010/0.008 mm
General Power Capacity
25 kVa
37 kVa
Spindle Motor
11/15 kW
15/18.5
Floor Space
4400 x 2565 mm
4800 x 3000 mm
Machine Weight
7000 kg
11000 kg
i5 Series
i5 T5
Model
T5.1
T5.2
Swing Over Bed
ø420 mm
ø560 mm
Max. Cutting lenght
350 mm
500 mm
Max. Cutting Diameter
ø280 mm
ø350 mm
Swing Over Slide
ø360 mm
ø360 mm
Spindle nose
A2-5
A2-6
Chuck diameter
6"
8"
Diameter of spindle bore
ø56 mm
ø65 mm
Max. Spindle speed
4500 r/min
4500 r/min
Main motor power
7.5/11 kW
11/15 kW
X axis stroke
175 mm
200 mm
Z axis stroke
410 mm
560 mm
Tail stock stroke
300 mm
450 mm
Size of tool shank
25x25 mm
25x25 mm
Rapid feed (X/Z axis)
30/30 m/min
30/30 m/min
Net weight
3000 kg
4000 kg
Machine dimensions (LxWxH)
2130x1785x1750 mm
2750x1890x1900 mm
i5 Series

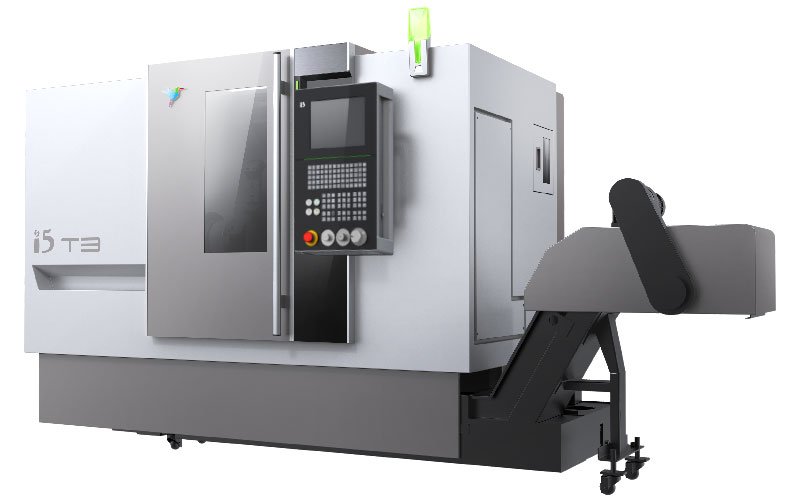

i5 T3
Model
T3.1
T3.3
Swing Over Bed
ø420 mm
ø480 mm
Max. Cutting lenght
200 mm
500 mm
Max. Cutting Diameter
ø160 mm
ø360 mm
Swing Over Slide
ø160 mm
ø260 mm
Spindle nose
A2-5
A2-6
Chuck diameter
6"
8"
Diameter of spindle bore
ø56 mm
ø65 mm
Max. Spindle speed
5000 r/min
4000 r/min
Main motor power
5.5/7.5 kW
11/15 kW
X axis stroke
400 mm
190 mm
Z axis stroke
250 mm
510 mm
Tail stock stroke
-
400 mm
Station number
Gang Type
8
Size of tool shank
25x25 mm
25x25 mm
Rapid feed (X/Z axis)
30/30 m/min
30/30 m/min
Machine dimensions (LxWxH)
2130x1785x1750 mm
2750x1890x1900 mm
SMTCL Series
VMC1000B
Model
VMC1000B
Controller
Fanuc
X/Y/Z Axis Travel
1000/610/650 mm
Table Size
1200x500 mm
Max.Load
600 kg
Spindle Speed
8000/10000 (opt) Rpm
Spindle Taper
BT40/BT50 (opt)
X/Y/Z Rapid Feed
32/32/30 m/min
Auto Tool Change
Arm 24 T
Tool Change Time
2.5 s
X/Y/Z Positioning Accuracy
0.016/0.012/0.012 mm
X/Y/Z Axis Repeatability
0.010/0.008/0.008 mm
General Power Capacity
25 kVa
Spindle Motor
11/15 kW
Floor Space
4400 x 2565
Machine Weight
7000 kg
SMTCL Series
Viva Turn T2C-500
Technical Specification
Specification
Viva Turn T2C-500
Max. Swing Diameter
560 mm
Max. Cutting Length
500 mm
Max. Cutting Diamater
280 mm
Max. Swing Diameter Over Cross Carriage
360 mm
Spindle Nose
A2-6
Spindle Hole Diameter
65 mm
Max. Bar Diameter
50 mm
Spindle Speed Range
30-4500 r/min
Main Power
11/15 kW
Chuck Diameter
8”
X/Z Axis Rapid Transverse
30/30 m/min
X/Z Axis Travel
200/560 mm
Max Load (Disc/Shaft)
200/500 Kg
Center Height
1050 mm
Packing dimensions (L x W x H)
2750 x 1860 x 1850 mm
Net Weight
4000 kg
Standard Accessories
Fanuc 0i-Mate
8 position servo turret
8” hollow chuck
Hydraulic tailstock
Chip conveyor
SMTCL Series
HTC
Model
HTC3630
HTC3650
Max. Turning leght
300 mm
500 mm
Max. Swing diameter over bed
ø550 mm
ø550 mm
Max. Swing diameter over slide
ø320 mm
ø320 mm
Max. Cutting diameter over slide
ø360 mm
ø360 mm
Spindle nose
A2-6
A2-6
Chuck diameter
8"
8"
Diameter of spindle bore
ø65 mm
ø65 mm
Spindle speed
50-4500 r/min
50/4500 r/min
Main motor power
15/11 kW
15/11 kW
X axis stroke
200 mm
200 mm
Z axis stroke
350 mm
550 mm
Tail stock stroke
-
350mm
Size of tool shank
25x25 mm
25x25 mm
Rapid feed (X/Z axis)
30/30 m/min
30/30 m/min
Net weight
4000 kg
4300 kg
Machine dimensions (LxWxH)
2200x1890x1945 mm
2700x1890x1945 mm
SMTCL Series
CAK
Model
CAK4065
CAK4085
CAK50135
Max. Turning leght
650 mm
850mm
1350 mm
Max. Swing diameter over bed
ø400mm
ø400 mm
ø500 mm
Max. Swing diameter over slide
ø200 mm
ø200 mm
ø300 mm
Max. Cutting diameter over slide
ø400 mm
ø400 mm
ø500 mm
Spindle nose
A16
A16
A28
Chuck diameter
ø250 mm
ø250 mm
ø250 mm
Diameter of spindle bore
ø53 mm
ø53 mm
ø70 mm
Spindle speed
100-2400 r/min
100-2400 r/min
15-2200 r/min
Main motor power
5.5 kW
5.5 kW
7.5 kW
Diameter of tailstock sleeve
ø60 mm
ø60 mm
ø75 mm
Travel of tailstock sleeve
160 mm
160 mm
150 mm
Number of tools in turret
4 tool
4 tool
4 tool
Size of tool shank
20x20 mm
20x20 mm
25x25 mm
Rapid feed (X/Z axis)
6/12 m/min
6/12 m/min
6/12 m/min
Machining accuracy
IT6-IT7
IT6-IT7
IT6-IT7
Net weight
1860 kg
1960 kg
3000 kg
Machine dimensions (LxWxH)
2350x1500x1580
2470x1500x1580 mm
3780x1700x1735mm
Conventional Machine
Z3050 x 16/2
Radial Drilling Machine Z3050 x 16/2
Technical Specification
Specification
Z3050 x 16/2
Max. drilling diameter
50 mm
Distance between spindle axis and column
Max
1600 mm
Min
350 mm
Distance spindle nose and working surface of base plate
Max
1220 mm
Min
320 mm
Spindle travel
315 mm
Spindle taper
No. 5#
Range of spindle speeds
25-2000 r/min
Number of spindle speeds
16
Range of spindle feeds
0.04x3.20 mm/r
Number of spindle feeds
16
Table size
500x630 mm
Travel of spindle head
1250 mm
Power of main motor
4 kW
Net weight
3500 kg
Overall dimensional (L x W x H)
2500 x 1070 x 2840 mm
Conventional Machine
Horizontal Boring

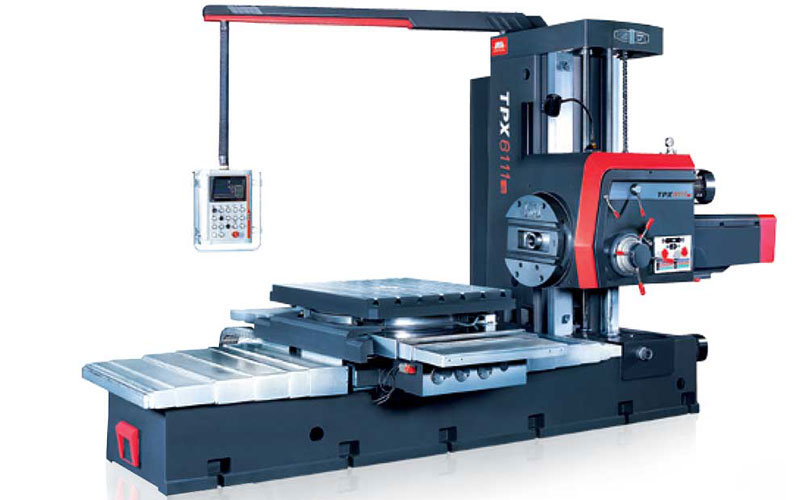

DRO Horizontal Boring & Milling Machine TPX
Item
Unit
TPX6111B
TPX6111B/2
TPX6111B/3
TPX6111C/3
Spindle
Diameter
mm
110
110
110
110
Taper
-
Morse No.6 (ISO7:24 No.50)
Morse No.6 (ISO7:24 No.50)
Morse No.6 (ISO7:24 No.50)
ISO7:24No.50
Max. torque
Nm
1225
1225
1225
1225
Max. Axial Thrust
N
12250
12250
12250
12250
Speed steps
-
22
22
22
Stepless
Speed range
r/min
8-1000
8-1000
8-1000
8-1000
Main motor power
Kw
7.5
7.5
7.5
15
Facing Head
Max. torque
N.m
1960
1960
1960
1960
Diameter
Mm
600
600
600
600
Speed range
r/min
4-200
4-200
4-200
4-200
Speed settings
-
18
18
18
Stepless
Worktable
Dimension
Mm
1100x960
1100x960
1250x1100
1250x1100
Max load
Kg
5000
5000
5000
5000
T-slot size
Mm
22
22
22
22
T-slot count
-
7
7
7
7
Machining Range
X-axis travel
Mm
900
1250
1600
1600
Y-axis travel
Mm
900
900
1200
1200
Z-axis travel
Mm
1400
1400
1400
1400
W-axis travel (spindle)
Mm
600
600
600
600
U-axis travel (facing head)
Mm
180
180
180
180
B-axis rotary angle
°
360
360
360
360
Feed (Spindle, Headstock, worktable)
Rapid traverse
Mm/min
2500
2500
2500
2500
Feed range of Axes foe each spindle revolution
Mm/rev
0.04-6/0.01-1.88
-
Feed range
Mm/min
0.32-1800
General
Dimension (LxWxH)
Mm
4910x2454x2750
4910x2870x2750
5028x3359x3079
5028x3359x3079
Machine weight
Kg
11500
13000
14000
14000
Conventional Machine

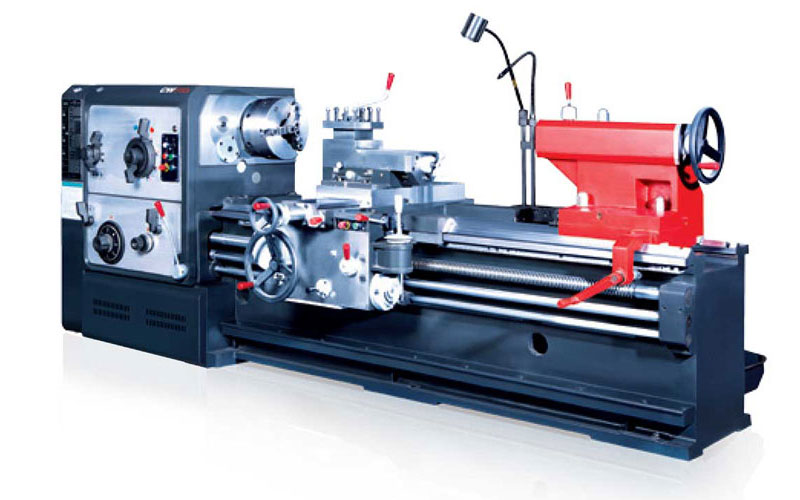

CW 6280B/3000
Technical Specification
Specification
CW 6280B/3000
Distance Between Center
3000 mm
Swing over Carriage
480 mm
Swing over Bed
800 mm
Max. cross travel of lower slide
500 mm
Max. travel of top slide
200 mm
Max. travel of tailstock quill
250 mm
Swing over Gap
1000/310mm
Spindle Bore
104 mm
Spindle Speeds
18 speeds 5.4-720 r/min
Width of Bed
600/RC52
Main motor power
11 or 15 kW
Net Weight
5500 kg
Standard Accessories
3 – jaw chuck Ø 315
4 – jaw chuck Ø 500
Face plate Ø 800
Steady rest Ø 40 – Ø 320
Follow rest Ø 30 - Ø 130
Center and sleeve metric
Lillumination, cooling
Tools
Conventional Machine

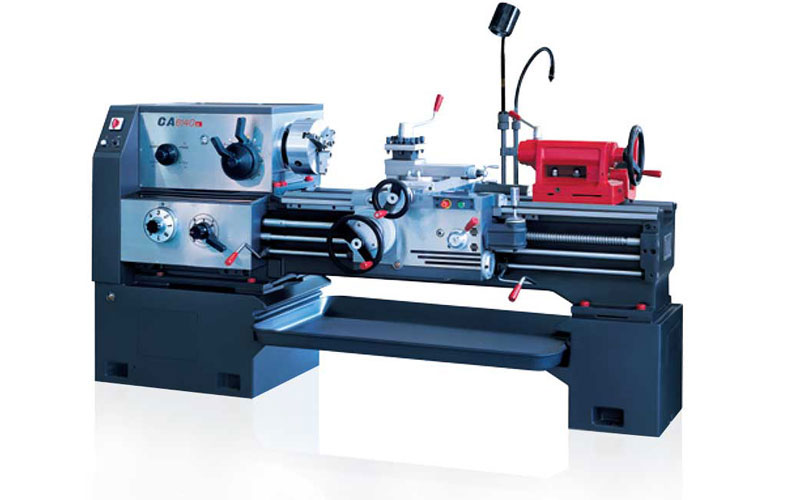

CA 6266B-2000
Technical Specification
Specification
CA 6266B-2000
Distance Between Center
2000 mm
Swing over Carriage
400 mm
Swing over Bed
660 mm
Swing over Gap
830 x 210mm
Spindle Bore
80 mm
Spindle Speeds
10-1400 r/min (24 kinds)
Width of Bed
400/RC52
Main motor power
7.5 kW
Net Weight
2842 kg
Overall Dimension (LxWxH)
3668 x 1130 x 1392 mm
Standard Accessories
250mm 3 Jaw Chuck
400mm 4 Jaw Chuck
700mm Face plate
20-125mm Steady rest
20-80mm Follow rest
Center and sleeve
Cooling Device
Lighting device
Oil Gun and tool
