i5 Series

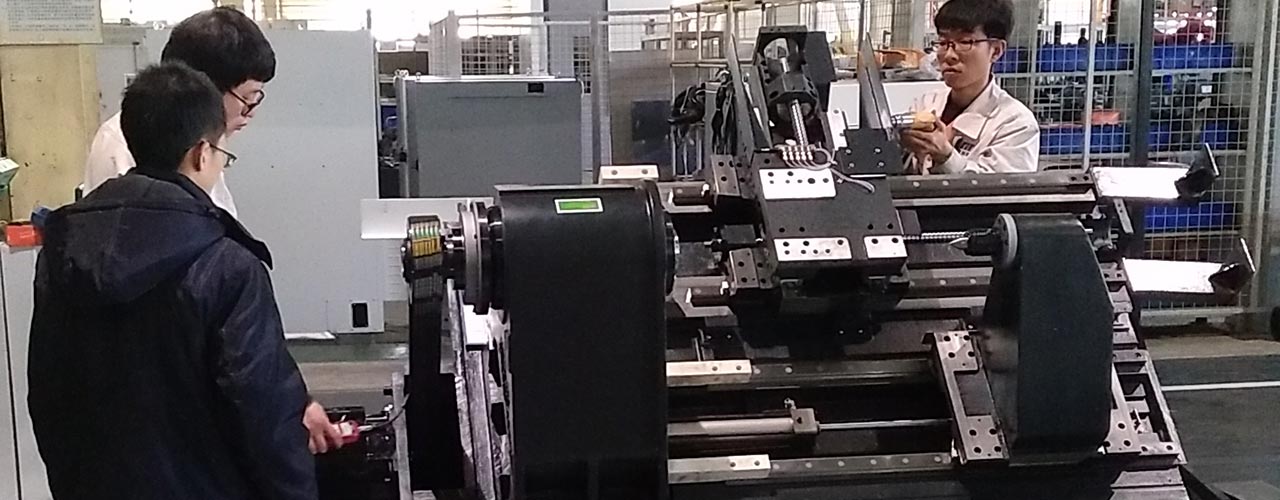

i5 T5

Model T5.1 T5.2
Swing Over Bed ø420 mm ø560 mm
Max. Cutting lenght 350 mm 500 mm
Max. Cutting Diameter ø280 mm ø350 mm
Swing Over Slide ø360 mm ø360 mm
Spindle nose A2-5 A2-6
Chuck diameter 6" 8"
Diameter of spindle bore ø56 mm ø65 mm
Max. Spindle speed 4500 r/min 4500 r/min
Main motor power 7.5/11 kW 11/15 kW
X axis stroke 175 mm 200 mm
Z axis stroke 410 mm 560 mm
Tail stock stroke 300 mm 450 mm
Size of tool shank 25x25 mm 25x25 mm
Rapid feed (X/Z axis) 30/30 m/min 30/30 m/min
Net weight 3000 kg 4000 kg
Machine dimensions (LxWxH) 2130x1785x1750 mm 2750x1890x1900 mm
