SMTCL Series

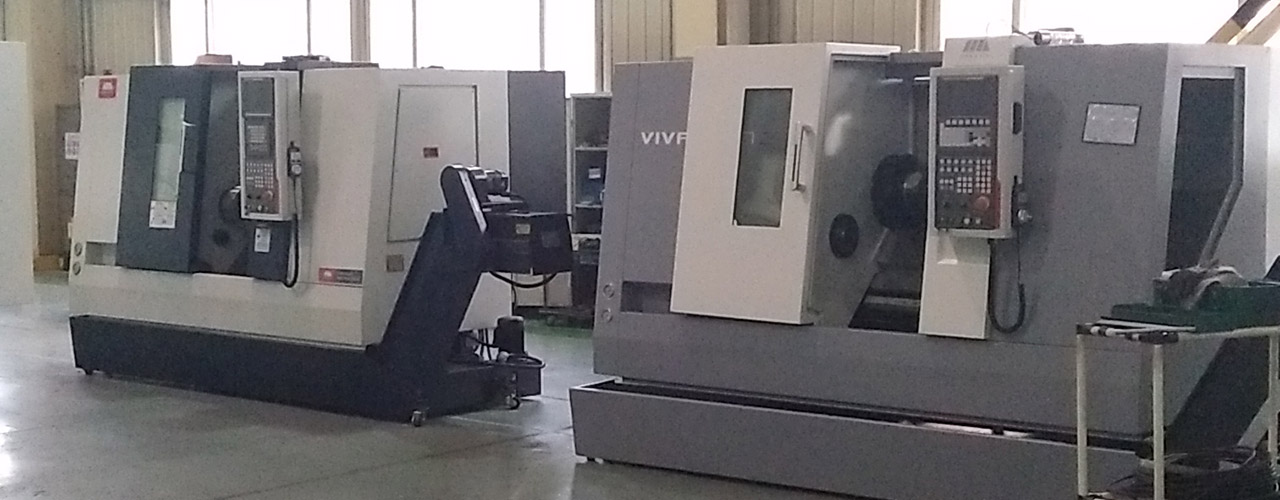

Viva Turn T2C-500
Technical Specification
Specification
Viva Turn T2C-500
Max. Swing Diameter
560 mm
Max. Cutting Length
500 mm
Max. Cutting Diamater
280 mm
Max. Swing Diameter Over Cross Carriage
360 mm
Spindle Nose
A2-6
Spindle Hole Diameter
65 mm
Max. Bar Diameter
50 mm
Spindle Speed Range
30-4500 r/min
Main Power
11/15 kW
Chuck Diameter
8”
X/Z Axis Rapid Transverse
30/30 m/min
X/Z Axis Travel
200/560 mm
Max Load (Disc/Shaft)
200/500 Kg
Center Height
1050 mm
Packing dimensions (L x W x H)
2750 x 1860 x 1850 mm
Net Weight
4000 kg
Standard Accessories
Fanuc 0i-Mate
8 position servo turret
8” hollow chuck
Hydraulic tailstock
Chip conveyor
